A53/A106 Spiral steel pipe

‹

›

‹

  • A53/A106 Spiral steel pipe
  • A53/A106 Spiral steel pipe
  • A53/A106 Spiral steel pipe

›

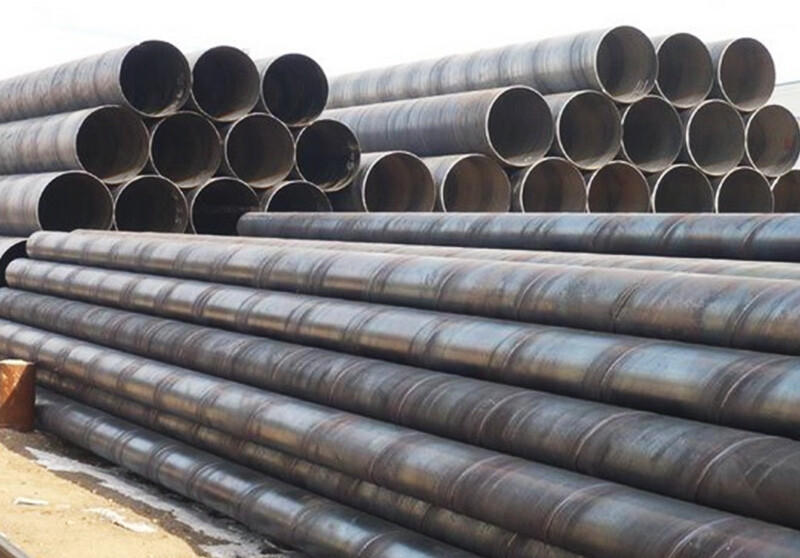

Spiral welded pipe: The low carbon carbon structural steel or low alloy structural steel strip is rolled into a tube blank according to a certain helix Angle (called forming Angle), and then the pipe seam is welded together, which can produce large diameter steel pipe with a narrower strip.
The welded pipe should ensure that the water pressure test, the tensile strength of the weld and the cold bending performance should meet the requirements.
+86 18920895995
8618920895995
info@cntiscometal.com
Whatsapp
E-mail
CARBON STEEL PLATE
CARBON STEEL PIPE
STAINLESS STEEL
COATED STEEL
PROFILE STEEL
CONSTRUCTION MATERIALS
Consulting service
TEL:+86 18920895995
E-mail:info@cntiscometal.com
WhatsApp:8618920895995
Submit
Product Specification
Ingredients/Data

Product Name

A53/A106 Spiral steel pipe

Standard

EN/DIN/JIS/ASTM/BS/ASME/AISI etc.

Material type

Q195,Q235A, Q235B, Q235, Q275,Q345,A53-A369, ST35-ST52, #10,#45 etc.

Outer Diameter

Seamless: 1/4"-36"

Welding: 21.3mm-3620mm

Round Tube: 1/2"-10"

Square Tube/Rectangular Tube: 15x15mm-400x600mm

Wall Thickness

Seamless: 1.25mm-50mm

Welding: 1.65mm-65mm

Length

3-12 meters, Support customization

Surface Process

Bright, Polished, Black

Certificate

CE, tisi, KS, JIS, GS, ISO9001

Delivery Time

within 7 days

Other Services

Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



lassfication

Standard

Main Products

Steel Pipe for Fluid Service

GB/T 14291

Welded pipe for mine fluid sevice

GB/T 3091

Welded pipe for low pressure fluid service

SY/T 5037

Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service

ASTM A53

Black and hot-hipped galvanized welded and seamless steel pipe

BS EN10217-2

Welded steel tybes for pressure purposes - delivery technical conditions - part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties

BS EN10217-5

Welded steel tybes for pressure purposes - delivery technical conditions - part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties

Steel Pipe for Ordinary Structure

GB/T 13793

Longitudinally electric resistance welded steel pipe

SY/T 5040

Spirally submerged arc welded steel pipe piles

ASTM A252

Welded and seamless steel pipe piles

BS EN10219-1

Cold formed welded structural hollow sections of non-alloy and fine grain steels - part1: Technical delivert conditions

BS EN10219-2

Cold formed welded structural hollow sections of non-alloy and fine grain steels - part2: tolerances dimmsions and sectional properties

Line Pipe

GB/T 9711.1

Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe)

GB/T 9711.2

Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe)

API 5L PSL1/2

Line pipe

Casing

API 5CT/ ISO 11960 PSL1

Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries

Chemical Composition（%）

A53

Grade

C

Mn

P

S

Cu

Ni

Cr

Mo

V

TypeS(Seamless)

A

0.25

0.95

0.05

0.05

0.4

0.4

0.4

0.15

0.08

B

0.3

1.2

0.05

0.05

0.4

0.4

0.4

0.15

0.08

TypeE(Resistance Welding)

A

0.25

0.95

0.05

0.05

0.4

0.4

0.4

0.15

0.08

B

0.3

1.2

0.05

0.05

0.4

0.4

0.4

0.15

0.08

TypeF(Furnace Welding)

A

0.3

1.2

0.05

0.05

0.4

0.4

0.4

0.15

0.08


Mechanical Properties

A53

GradeA

GradeB

Tensile Strength Min.psi(MPa)

48,000(330)

60,000(415)

Yield Strength Min.psi(MPa)

30,000(205)

35,000(240)


Physical Performance

Density 20°CKg/dm³

Modulus of Elasticity Kn/² mm

Coefficient of Thermal Conductivity 20°CW/m K

Heat Capacity 20°CJ/kg K

Resistivity 20°CΩmm²/m

20C°

300C°

400C°

450C°

7.85

210

192

184

179

51

461

0.2


----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Chemical Composition(%)

A106

C

Mn

P

S

Si

Cr

Cu

Mo

Ni

V

GradeA

0.25

0.27-0.93

0.035

0.035

0.1

0.4

0.4

0.15

0.4

0.08

GradeB

0.3

0.29-1.06

0.035

0.035

0.1

0.4

0.4

0.15

0.4

0.08

GradeC

0.35

0.29-1.06

0.035

0.035

0.1

0.4

0.4

0.15

0.4

0.08


Mechanical Properties

A106

GradeA

GradeB

GradeC

Tensile Strength min.psi

48,000

60,000

70,000

Yield Strength min.psi

30,000

35,000

40,000


Scope of Application

ASTM A106 seamless pressure pipe (also known as ASME SA106 pipe) is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers and ships. These pipes must transport fluids and gases with high temperature and pressure levels.


Hot product
Our Services

Buy our products, we will provide free service

Business service

Tianjin TISCO is a professional steel supplier. With the support of the most professional steel manufacturers and a large number of customers, we can not only provide you with ordinary steel, but also help you customize special steel, special size, special process shape and other services.

Packaging and transportation

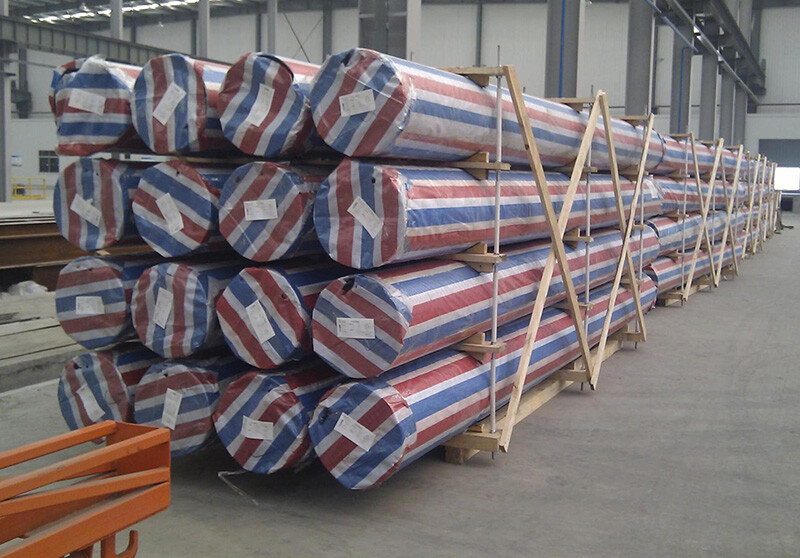

Tianjin TISCO uses standard export transport packaging and bundles steel bands according to the size of the stainless steel plate. We have frequent cooperation with freight forwarders to ensure the safe arrival of goods to the port.
According to our shipping experience, a 20-foot container can hold 22 tons of stainless steel, and a 40-foot container can hold 25 tons of stainless steel. For larger orders, we ship by bulk carrier, which is cheaper. Packaging can also be customized according to customer needs.
