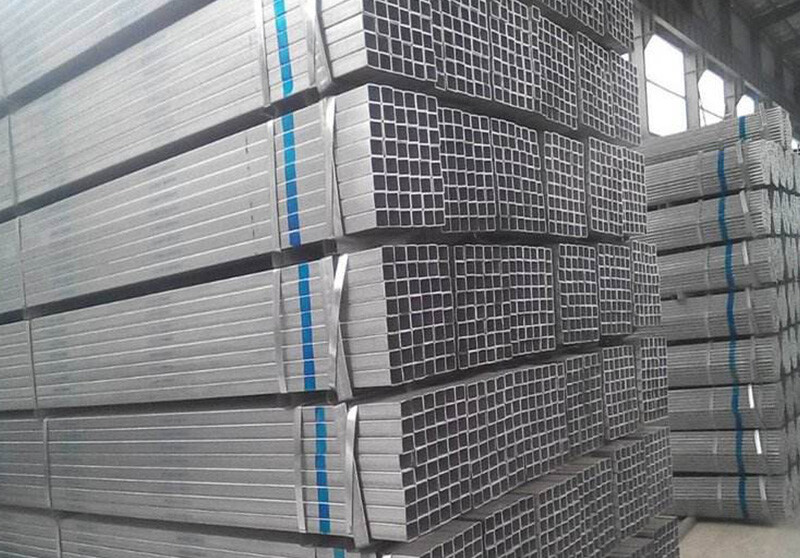

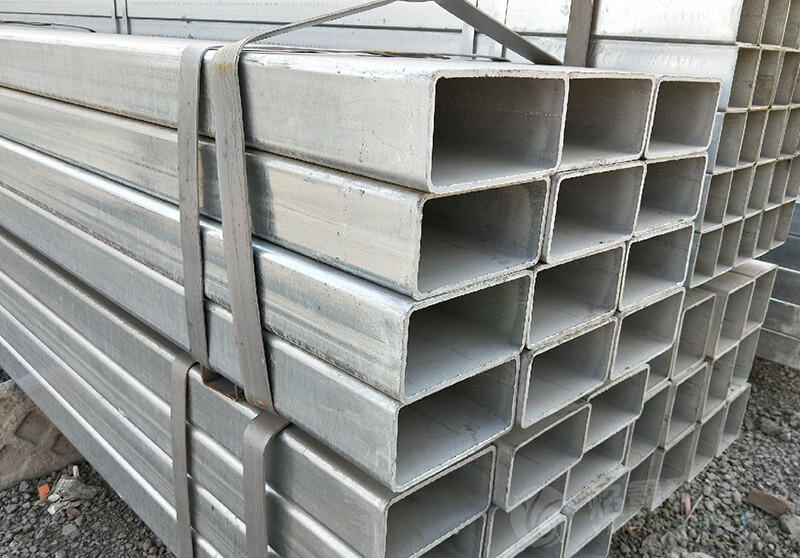

Galvanized rectangular pipe

‹

›

‹

  • Galvanized rectangular pipe
  • Galvanized rectangular pipe
  • Galvanized rectangular pipe
  • Galvanized rectangular pipe
  • Galvanized rectangular pipe

›

Galvanized rectangular pipeis a kind of hollow square sectional steel pipe with square section shape and size made of hot rolled or cold rolled galvanized strip steel or galvanized coil as billet by cold bending processing and then by high frequency welding, or the cold formed hollow steel pipe made in advance by hot dip galvanized rectangular pipe processing.
+86 18920895995
8618920895995
info@cntiscometal.com
Whatsapp
E-mail
CARBON STEEL PLATE
CARBON STEEL PIPE
STAINLESS STEEL
COATED STEEL
PROFILE STEEL
CONSTRUCTION MATERIALS
Consulting service
TEL:+86 18920895995
E-mail:info@cntiscometal.com
WhatsApp:8618920895995
Submit
Product Specification
Ingredients/Data

Galvanized rectangular pipe is divided into:

Hot-dip galvanized rectangular pipe and electrogalvanized rectangular pipe two categories. Hot-dip galvanized square pipe has wet method, dry method, lead-zinc method, REDOX method and so on. The main difference between different hot dip galvanizing methods is what method is used to activate the surface of the pipe to improve the quality of galvanizing after the acid dip cleaning of the steel pipe. At present, dry method and REDOX method are mainly used in production, and their characteristics are shown in the table. The surface of the zinc layer of electrogalvanizing is very smooth and compact with uniform structure. Good mechanical properties and corrosion resistance; The zinc consumption is 60%~75% lower than that of hot dip galvanizing. Electrogalvanizing has a certain complexity in technology, but this method must be used for single-sided coating, double-sided coating with different thickness of internal and external surface coating, and thin-wall pipe galvanizing.


Galvanized pipe size specification table


Specification

Galvanized pipe measuring 6 meters

Welded pipe measuring 6 meters

Number

Nominal inside diameter

Inches

OD/mm

WT/mm

Minimum wall thickness

Weight per meter/kg

Weight per stick/kg

Weight per meter/kg

Weight per stick/kg

1

DN15 galvanized pipe

 1/2

21.3

2.8

2.45

1. 35

8.14

1.28

7.68

2

DN20 galvanized pipe

 3/4

26.9

2.8

2.45

1. 76

10. 56

1. 66

9.96

3

DN25 galvanized pipe

1.0

33.7

3.2

2.8

2.554

15.32

2.41

14.46

4

DN32 beryllium zinc tube

1.25

42.4

3.5

3.06

3.56

21.36

3.36

20.16

5

DN40 galvanized pipe

1.5

48.3

3.5

3.06

4.1

24.6

3.87

23.22

6

DN50 plated front tube

2.0

60.3

3.8

3.325

5.607

33.64

5.29

31.74

7

DN65 galvanized pipe

2.5

76.1

4.0

3.5

7.536

45.21

7.11

42.66

8

DN80 galvanized pipe

3.0

88.9

4.0

-

8.88

53.28

8.38

50.28

9

DN100 galvanized pipe

4.0

114.3

4.0

-

11.53

69.18

10.88

65.28

10

DN125 galvanized pipe

5.0

140

4.5

-

15.942

98.65

15.04

90.24

11

DN150 galvanized pipe

6.0

168.3

4.5

-

19.27

115.62

18.18

109.08

12

DN200 galvanized pipe

8.0

219.1

6.0（Welded pipe）

-

-

-

31.53

189.18

13

DN200 galvanized pipe

8.0

219.1

6.5（Hot dip galvanizing）

-

36.12

216.7

-

-




Product Name

Galvanized rectangular pipe

Standard

EN/DIN/JIS/ASTM/BS/ASME/AISI etc.

Material type

Q195 Q235A A35 A53 A106 S235 S355 Dx51d+Z Dx52d+Z Dx53d+Z,etc.

Outer Diameter

Seamless: 1/4"-36"

Welding: 21.3mm-3620mm

Round Tube: 1/2"-10"

Square Tube/Rectangular Tube: 15x15mm-400x600mm

Wall Thickness

Seamless: 1.25mm-50mm

Welding: 1.65mm-65mm

Wall Thickness

1MM~12MM as the requirement

Outer Diameter

21.3MM~219.1MM

Length

5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques

Zinc Coating

30g-275g

Technique

Seamless / ERW(GALVANIZED)

Packing

Bundle, or with all kinds of colors PVC or as your requirements

Certificate

CE, tisi, KS, JIS, GS, ISO9001

Delivery Time

within 7 days

Other Services

Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



Acceptance criteria:

Hot-dip galvanized rectangular pipe generally determines whether it is qualified by the appearance of the product, and if there is leakage plating, pitting, white spots, heavy skin, bubbles, green and the frequency is too high on the surface of the square pipe wall, it is judged to be unqualified products. However, in the product standard, the deviation of the product has a specified range, that is, the "allowable deviation" of the size.

Purpose:

Mainly used in curtain wall, construction, machinery manufacturing, steel construction projects, shipbuilding, solar power generation bracket, steel structure engineering, power engineering, power plant, agriculture and chemical machinery, glass curtain wall, automobile chassis, airports and so on.


Square tube size (mm)

Rectangular tube size (mm)

16×16×0.4~1.5

380×380×8.0~14.0

10×20×0.6~1.5

250×150×6~12.0

18×18×0.4~1.5

400×400×8.0~14.0

14×21×0.6~1.5

250×100×6~12.0

20×20×0.4~1.5

420×420×10.0~14.0

15×30×1.5~1.5

250×200×6~12.0

25×25×0.6~2.0

450×450×10.0~14.0

15×38×0.6~1.5

300×150×6~12.0

30×30×0.6~4.0

480×480×10.0~14.0

20×30×0.6~2.0

300×200×6~12.0

34×34×1.0~2.0

500×500×10.0~14.0

20×40×0.8~2.0

300×250×6~12.0

35×35×1.0~4.0

550×550×10.0~40.0

20×50×1.0~2.0

400×250×8~12.0

38×38×1.0~4.0

600×600×10.0~40.0

22×35×0.9~2.0

400×300×8~12.0

40×40×1.0~4.5

700×700×10.0~40.0

25×40×0.9~3.75

450×200×8~12.0

44×44×1.0~4.5

800×800×10.0~50.0

25×65×1.0~2.0

450×250×8~12.0

45×45×1.0~5.0

900×900×10.0~50.0

30×40×1.0~3.75

400×300×8~12.0

50×50×1.0~5.0

1000×1000×10.0~50.0

30×45×1.0~3.75

400×350×8~12.0

60×60×1.5~5.0


30×50×1.0~4.0

500×200×10~12.0

70×70×2.0~6.0


30×60×1.0~4.5

500×250×10~12.0

75×75×2.0~6.0


40×50×1.0~4.5

500×300×10~12.0

80×80×2.0~6.0


40×60×1.0~5.0

500×350×10~12.0

85×85×2.0~6.0


40×80×1.5~5.0

500×400×10~12.0

95×95×2.0~8.0


40×100×2.0~5.0

500×450×10~12.0

100×100×2.0~8.0


50×60×2.0~5.0

600×200×10~28.0

120×120×4.0~8.0


50×80×2.0~5.0

600×400×10~28.0

150×150×6.0~10.0


50×100×2.0~8.0

600×500×10~28.0

180×180×6.0~12.0


60×80×2.0~6.0

800×400×10~28.0

200×200×6.0~12.0


80×100×2.0~8.0

800×600×10~28.0

220×220×6.0~14.0


120×60×2.5~10.0

800×700×10~28.0

250×250×6.0~14.0


120×80×2.5~10.0

1000×400×10~28.0

280×280×6.0~14.0


150×100×2.5~12.0

1000×500×10~28.0

300×300×8.0~14.0


180×150×2.5~12.0

1000×600×10~28.0

320×320×8.0~14.0


200×100×4~12.0

1000×800×10~28

350×350×8.0~14.0


200×150×4~12.0
