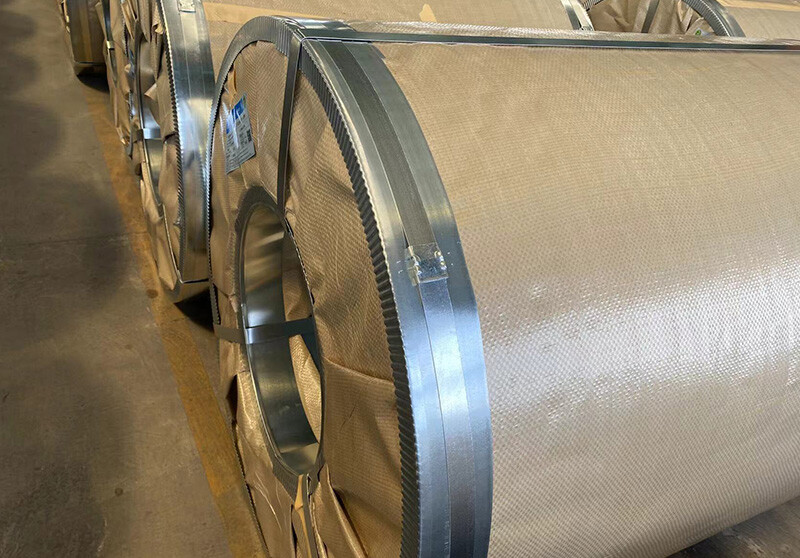

DC01/DC02/DC04 Galvanized coil

Galvanized steel plate is a steel plate with a layer of zinc plated on the surface. Galvanizing is an economical and effective anti-corrosion method that is often used. About half of the world's zinc production is used in this process. Galvanized steel plate is to prevent corrosion on the surface of the steel plate to extend its service life, coated with a layer of metal zinc on the surface of the steel plate, the zinc-coated steel plate is called galvanized plate.

+86 18920895995

8618920895995

info@cntiscometal.com

Whatsapp

E-mail

Product Specification

Ingredients/Data

Product name	Galvanized Steel Sheet
Grade	SPCC,SPCD,SPCE,ST12-15,DC01-06,Q195A-Q235A,Q195AF-Q235AF, Q295A(B)-Q345A(B)，Dx51d+Z, Dx53d+Z
Standard	GB,JIS,DIN,AISI,ASTM
Thickness	0.2-3.mm or according to customer's special request
Width	600mm to 1500mm, all available.
Elongation	Min.25%
Zinc coating weight	60g/m2-600g/m2
Tensile strength	28.1 - 49.2kgf/mm2
Edge	Mill edge, cut edge
Surface	Pre galvanized, hot dip galvanized, color coated, ect.
Trade Term	FOB,CIF,CFR,EXW,etc.
Price Term	T/T,Western Union,Paypal,Apple Pay,Google Pay,D/A,D/P,MoneyGram
Application	1. Refrigerator shutter &side panels, Washer, Freezers, Air conditions,2. Rice Cooker, Microwave Ovens, Water Heaters, Sterilization Cabinets, Range Hoods, Computer Panels , DVD/DVB panels, TV back panel etc.
Delivery times	Delivered within 7 days after the receipt of deposit

Approximate comparison table of cold rolled low carbon coated steel plate grades
Material class			GB	JIS	DIN	EN	ASTM	Remark
Material class		Band	Band	Band	Band	Band	Standard number	Remark
Cold rolled low carbon steel, ultra-low carbon steel, strip steel	(CQ)	SPCC ST12	Q195 10-P 10-S 08-P 08-S 08A1-P 08AL-S	SPCC	ST12	FeP01	ASTM A366/A366M-96(replaced by ASTM A366/A366M-97)	1.1. Q195 in GB1253-89 is an ordinary carbon structural steel. 2.2. This kind of steel can be made of auto parts, furniture shell, barrel steel furniture and other simple molding bending or welding processing products
	(DQ)	SPCD ST13	10-Z 08-Z 08A1-Z	SPCD	USt13 RRSt13	FeP03	ASTM A619/A619M-96(Retired after 1997)	Can produce car doors, Windows,fenders, motor shell stamping and more complex deformation processing parts
	(DDC)	SPCE-F SPCE-HF SPCE-ZF ST14-F ST14-HF ST14-ZF ST14-T	08AL-F 08AI-HF 08A1-ZF	SPCE	ST14	FcP04	ASTM A620VA620M-96(replaced by ASTM A620/A620M-97)	1.1. Can produce car headlights, fueltanks, doors, Windows and other deep drawing and complex, intense deformation processing parts. 2.2.Q/BQB403-99 The newly added ST14-T is exclusively for the Shanghai Volkswagen Factory
	(SDDQ)	ST15				FcP05		Can produce car fuel tank, headlights,complex car bottom and other
	(EDDQ)	ST16 BSC2 (BIF2) BSC3 (BIF3)				FcP06		1.1. This type is super deep drawing nogap atomic steel. 2.2. FeP06 of EN 10130-9l replaces lF18in SEW095.
Cold rolled carbon structural steel sheet and steel strip		SB7-2G	Q215 Q235 15-P 15-S 15-Z	SPFC370 SPFC390	St37-2GU St37-2G St37-3G		ASTM A611.96 GradA,B GradC-1.C-2(replaced by Version 97)	Structural steel has comprehensive mechanical properties (strength,elongation, etc.) and good technological properties.
		St44-3G	Q255 20-P 20-S 20-Z	SPFC440	St44-3G		Grad D-1,D-2
		S152-3G	Q275	SPFC490 SPFC540	St52-3G		Grad E

The galvanizing method of flowless galvanized sheet is produced by cold plating process. Cold galvanizing refers to the formation of a zinc layer on the surface of the steel, but it does not require high temperature treatment like hot dip galvanizing. Cold galvanizing is the deposition of zinc in an electrochemical form on the surface of the steel, so that the steel can be protected from corrosion.

Differences between cold plating and hot plating

Compared with hot-dip galvanizing, the advantage of cold galvanizing is that the mechanical properties of the steel can be retained, while hot-dip galvanizing will cause deformation and damage to the steel under the zinc layer. At the same time, cold galvanized can also improve the surface hardness, reduce the coefficient of friction, enhance wear resistance, so that it can better adapt to the mechanical processing and use of environmental requirements.
