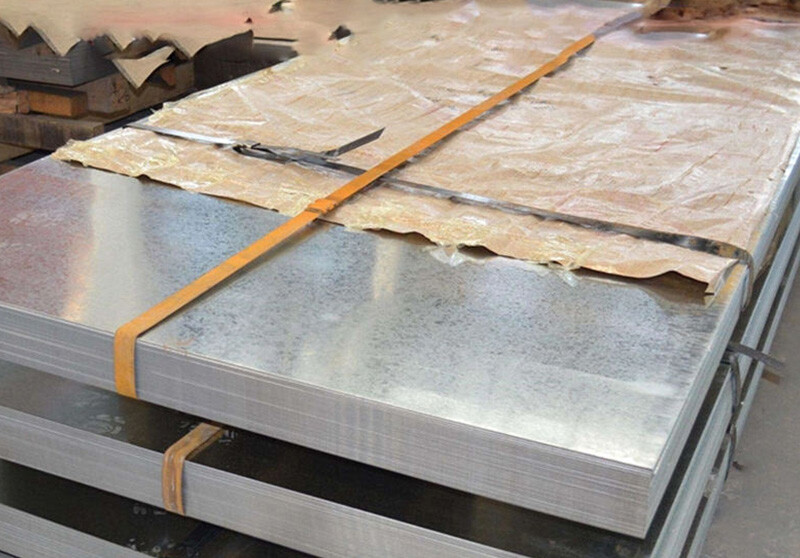

EN 1.0241 Galvanized Steel

‹

›

‹

  • EN 1.0241 Galvanized Steel
  • EN 1.0241 Galvanized Steel
  • EN 1.0241 Galvanized Steel
  • EN 1.0241 Galvanized Steel

›

Galvanized steel plate is a steel plate with a layer of zinc plated on the surface. Galvanizing is an economical and effective anti-corrosion method that is often used. About half of the world's zinc production is used in this process. Galvanized steel plate is to prevent corrosion on the surface of the steel plate to extend its service life, coated with a layer of metal zinc on the surface of the steel plate, the zinc-coated steel plate is called galvanized plate.
+86 18920895995
8618920895995
info@cntiscometal.com
Whatsapp
E-mail
CARBON STEEL PLATE
CARBON STEEL PIPE
STAINLESS STEEL
COATED STEEL
PROFILE STEEL
CONSTRUCTION MATERIALS
Consulting service
TEL:+86 18920895995
E-mail:info@cntiscometal.com
WhatsApp:8618920895995
Submit
Product Specification
Ingredients/Data

1.S220GD

S220GD is a cold-formed steel with a zinc layer mass of Z100 and a tensile strength of 220 to 300N/mm². It is suitable for light component manufacturing, such as vehicle parts, light roof truss, door and window frame, etc.

2.S250GD

S250GD is a cold-formed steel with a zinc layer mass of Z200 and a tensile strength of 250 to 330N/mm². It is suitable for a variety of applications, such as building structure, door and window manufacturing, furniture manufacturing, etc.

3.S280GD

S280GD is a cold-formed steel with zinc layer mass Z275 and tensile strength of 280 to 360N/mm². It has high strength and weather resistance, and is suitable for building structures, Bridges, doors and Windows manufacturing in outdoor environments.

4.S320GD

S320GD is a cold-formed steel with zinc layer mass of Z275 and tensile strength of 320 to 390N/mm². It is suitable for applications requiring high strength and weather resistance such as long-life roofing, wallboard materials, roof truss and large structures, etc.

5.S350GD

S350GD is a cold-formed steel with zinc layer quality of Z350 and tensile strength of 350 to 420N/mm². It has high strength and excellent durability, which is suitable for building structures and industrial equipment manufacturing requiring higher wind resistance.

6.S550GD

S550GD is a high strength cold formed steel with zinc layer mass of Z450 and tensile strength of 550 to 650N/mm². It is usually used in applications with high strength requirements, such as engine hoods, structural supports, etc.

Scope of Application

Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.


Product name

Galvanized Steel Sheet

Grade

S220GD(1.0241)、S250GD(1.0242)、S280GD(1.0244)、S320GD(1.0250)、S350GD(1.0529)、S390GD(1.0238)、S420GD(1.0239)、S450GD(1.0233)、S550GD(1.0531)

Standard

GB,JIS,DIN,AISI,ASTM

Implementation standard

DIN EN 10346

Thickness

0.2-3.mm or according to customer's special request

Width

600mm to 1500mm, all available.

Elongation

Min.25%

Zinc coating weight

60g/m2-600g/m2

Tensile strength

28.1 - 49.2kgf/mm2

Edge

Mill edge, cut edge

Surface

Pre galvanized, hot dip galvanized, color coated, ect.

Trade Term

FOB,CIF,CFR,EXW,etc.

Price Term

T/T,Western Union,Paypal,Apple Pay,Google Pay,D/A,D/P,MoneyGram

Application

1. Refrigerator shutter &side panels, Washer, Freezers, Air conditions,2. Rice Cooker, Microwave Ovens, Water Heaters, Sterilization Cabinets, Range Hoods, Computer Panels , DVD/DVB panels, TV back panel etc.

Delivery times

Delivered within 7 days after the receipt of deposit

Production process



We will provide free service (please consult the sales staff)

Surface Treatment Type

Code

Features

Chromic Acid Treatment

C

Good corrosion resistance, suitable for bare state

Chromic Acid Treatment+Oiling

S

Good corrosion resistance

Phosphoric Acid Treatment (Including Sealing Treatment)

P

Have a certain corrosion resistance, good paint performance

Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling

Q

Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage

Phosphoric Acid Treatment (Excluding Sealing Treatment)

T

Have a certain corrosion resistance, good paint performance

Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling

V

Has a certain corrosion resistance, good paint performance, and prevent rust

Oiling

O

Prevent rust during transportation and storage

No Treatment

M

Suitable for immediate painting




Chemical Composition(%)

Standard

Grade

C

Si

Mn

P

S

Ti

Forcold Forming
Chinese Standard

DX51D+Z

0.12

0.5

0.6

0.1

0.045

0.3

DX52D+Z

0.12

0.5

0.6

0.1

0.045

0.3

DX53D+Z

0.12

0.5

0.6

0.1

0.045

0.3

DX54D+Z

0.12

0.5

0.6

0.1

0.045

0.3

DX56D+Z

0.12

0.5

0.6

0.1

0.045

0.3

DX57D+Z

0.12

0.5

0.6

0.1

0.045

0.3

Forcold Forming
Japanese Standard

SGCC

0.15

0.5

0.8

0.05

0.03

0.025

SGCD1

0.12

0.5

0.6

0.04

0.03

0.025

SGCD2

0.1

0.5

0.45

0.03

0.03

0.025

SGCD3

0.08

0.5

0.45

0.03

0.03

0.025

SGCD4

0.06

0.5

0.45

0.03

0.03

0.025

For Structure
Japanese Standard

SGC340

0.25

0.5

1.7

0.2

0.035

0.025

SGC400

0.25

0.5

1.7

0.2

0.035

0.15

SGC440

0.25

0.5

2

0.2

0.035

0.15

SGC490

0.3

0.5

2

0.2

0.035

0.025

SGC510

0.3

0.5

2.5

0.2

0.035

0.025

For Structure
AISI Standard

S220GD+Z

0.2

0.6

0.7

0.1

0.045

0.025

S250GD+Z

0.2

0.6

0.7

0.1

0.045

0.025

S280GD+Z

0.2

0.6

0.7

0.1

0.045

0.025

S320GD+Z

0.2

0.6

0.7

0.1

0.045

0.025

S350GD+Z

0.2

0.6

0.7

0.1

0.045

0.15

S550GD+Z

0.2

0.6

0.7

0.1

0.045

0.15


Mechanical Properties

Grade

Yield Strength MPa≥

Tensile Strength MPa≥

Elongation A%≥

DX51D Z/ZM/AZ/AM

240-380

270-500

22

DX52D Z/ZM/AZ/AM

140-300

270-420

26

DX53D Z/ZM/AZ/AM

140-260

270-380

30

DX54D Z/ZM/AZ/AM

120-220

260-350

36

S220GD Z/ZM/AM

220

300

20

S250GD Z/ZM/AZ/AM

250

330

19

S280GD Z/ZM/AM

280

360

18

S300GD A/AM

300

380

18

S320GD Z/ZM/AM

320

390

17

S350GD Z/ZM/AZ/AM

350

420

16

S450GD A/AM

450

480

15

S550GD Z/ZM/AZ/AM

550

550

-
