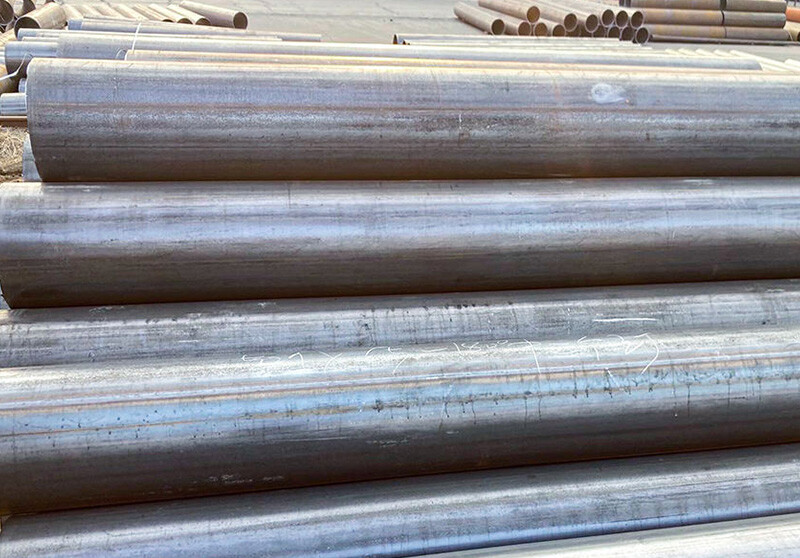

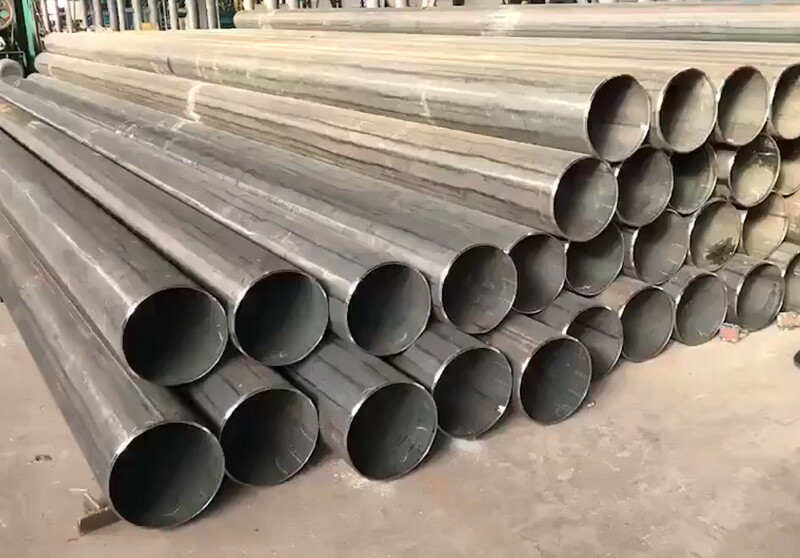

A36/A53/A106 Large diameter straight welded pipe

‹

›

‹

  • A36/A53/A106 Large diameter straight welded pipe
  • A36/A53/A106 Large diameter straight welded pipe
  • A36/A53/A106 Large diameter straight welded pipe
  • A36/A53/A106 Large diameter straight welded pipe

›

Straight seam welded pipe, steel pipe made of hot or cold rolled steel plate or steel strip coil welding, straight seam welded pipe on the welding equipment are called straight seam welded pipe. (Because the welding of the steel pipe is a straight line, so named). Among them, according to different uses, and different post-production processes, (can be roughly divided into scaffolding pipe, fluid pipe, wire sleeve, bracket pipe, guardrail pipe, etc.).
+86 18102185984
8618102185984
E-mail
CARBON STEEL PLATE
CARBON STEEL PIPE
STAINLESS STEEL
COATED STEEL
PROFILE STEEL
CONSTRUCTION MATERIALS
Consulting service
TEL:+86 18102185984
E-mail:info2@cntiscometal.com
WhatsApp:8618102185984
nic
Submit
Product Specification
Ingredients/Data

1. Classification of welding methods

According to different welding methods, it can be divided into arc welding pipe, high frequency or low frequency resistance welding pipe, gas welding pipe, furnace welding pipe, Bondi pipe and so on.

Electric welded steel pipe: used in oil drilling and machinery manufacturing.

Furnace welded pipe: can be used as water gas pipe, etc., large mouth straight seam welded pipe for high pressure oil and gas transmission; Spiral welded pipe is used for oil and gas conveying, pipe pile, bridge pier, etc.

2. Classification by weld shape

Can be divided into straight seam welded pipe and spiral welded pipe


Product Name

A36/A53/A106 Large diameter straight welded pipe

Standard

EN/DIN/JIS/ASTM/BS/ASME/AISI etc.

Material type

A53 A106 A333 A335 A336 A179 S235 S355 SA179 SA192 SA210 SA179 Q235

Outer Diameter

Seamless: 1/4"-36"

Welding: 21.3mm-3620mm

Round Tube: 1/2"-10"

Square Tube/Rectangular Tube: 15x15mm-400x600mm

Wall Thickness

Seamless: 1.25mm-50mm

Welding: 1.65mm-65mm

Length

3-12 meters, Support customization

Surface Process

Bright, Polished, Black

Certificate

CE, tisi, KS, JIS, GS, ISO9001

Delivery Time

within 7 days

Other Services

Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



ASTMA36 is an American standard carbon structural plate, which implements ASTMA36 /A36M-03a standard.

Chemical Composition（%）

A36

C

Si

Mn

P

S

Cu


≤0.25

≤0.40

≤0.80-1.20

≤0.04

≤0.05

≥0.20

Mechanical properties:

Tensile strength (σb/MPa):490-630    ——    Yield strength (σb/MPa) : ≥355    ——    Elongation (δ/%) : ≥21

-----------------------------------------------------------------------------------------------------------------------------------------------

Chemical Composition（%）

A53

Grade

C

Mn

P

S

Cu

Ni

Cr

Mo

V

TypeS(Seamless)

A

0.25

0.95

0.05

0.05

0.4

0.4

0.4

0.15

0.08

B

0.3

1.2

0.05

0.05

0.4

0.4

0.4

0.15

0.08

TypeE(Resistance Welding)

A

0.25

0.95

0.05

0.05

0.4

0.4

0.4

0.15

0.08

B

0.3

1.2

0.05

0.05

0.4

0.4

0.4

0.15

0.08

TypeF(Furnace Welding)

A

0.3

1.2

0.05

0.05

0.4

0.4

0.4

0.15

0.08

 Mechanical Properties

A53

GradeA

GradeB

Tensile Strength Min.psi(MPa)

48,000(330)

60,000(415)

Yield Strength Min.psi(MPa)

30,000(205)

35,000(240)

Physical Performance

Density 20°CKg/dm³

Modulus of Elasticity Kn/² mm

Coefficient of Thermal Conductivity 20°CW/m K

Heat Capacity 20°CJ/kg K

Resistivity 20°CΩmm²/m

20C°

300C°

400C°

450C°

7.85

210

192

184

179

51

461

0.20

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Chemical Composition

A106

C

Mn

P

S

Si

Cr

Cu

Mo

Ni

V

GradeA

0.25

0.27-0.93

0.035

0.035

0.10

0.40

0.40

0.15

0.40

0.08

GradeB

0.30

0.29-1.06

0.035

0.035

0.10

0.40

0.40

0.15

0.40

0.08

GradeC

0.35

0.29-1.06

0.035

0.035

0.10

0.40

0.40

0.15

0.40

0.08

 Mechanical Properties

A106

GradeA

GradeB

GradeC

Tensile Strength min.psi

48,000

60,000

70,000

Yield Strength min.psi

30,000

35,000

40,000

Scope of Application

ASTM A106 seamless pressure pipe (also known as ASME SA106 pipe) is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers and ships. These pipes must transport fluids and gases with high temperature and pressure levels.
