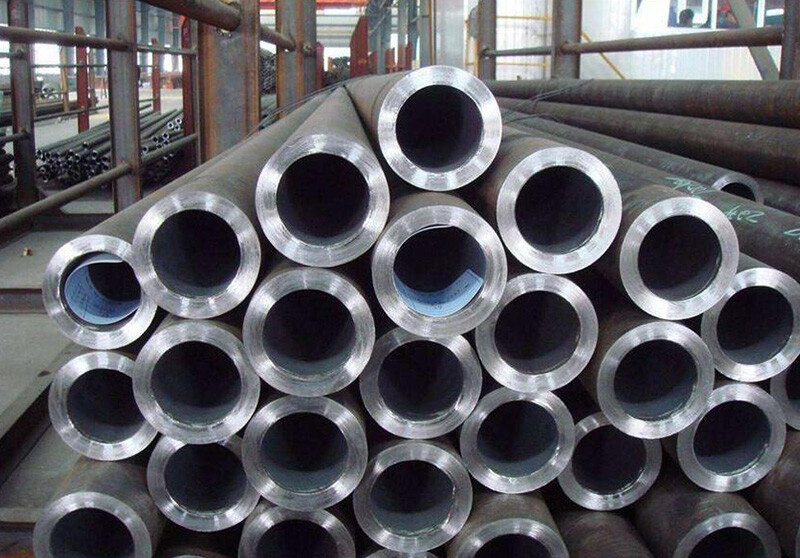

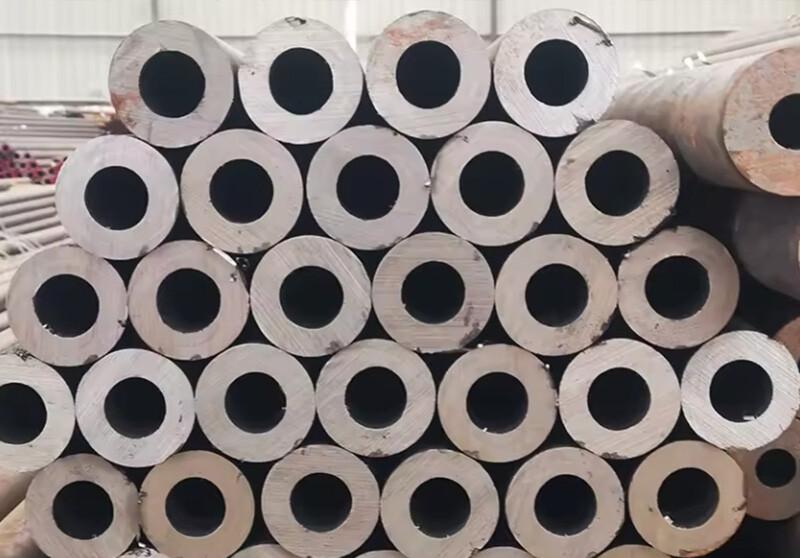

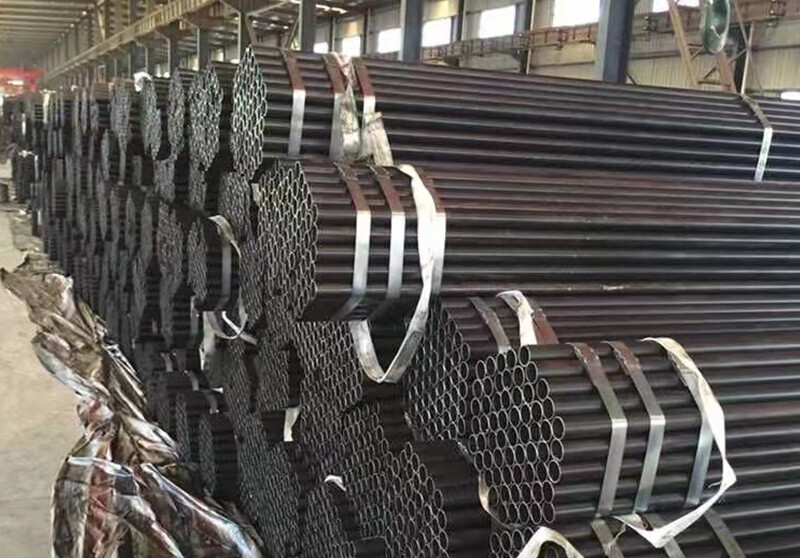

St37/St52 DIN Thick wall welded pipe

Thick wall steel pipe is mainly used in tap water engineering, petrochemical industry, chemical industry, electric power industry, agricultural irrigation, urban construction. For liquid transport: water supply, drainage. For gas transport: gas, steam, liquefied petroleum gas.
Product Specification
Ingredients/Data

Thick wall steel pipe, the steel pipe whose outer diameter and wall thickness ratio is less than 20 is called thick wall steel pipe. It is mainly used for petroleum geological drilling pipe, petrochemical cracking pipe, boiler pipe, bearing pipe and high-precision structural pipe for automobiles, tractors and aviation.


Product Name

St37/St52 DIN Thick wall welded pipe

Standard

EN/DIN/JIS/ASTM/BS/ASME/AISI etc.

Material type

A53 A106 A333 A335 A336 A179 S235 S355 SA179 SA192 SA210 SA179 Q235

  STPG38  G3456  G3455  1.0309  G3461  G3461  G3461  STPG42  St42-2  St37  St52  G3456  G3461  G3455

0Cr13  1Cr17  00Cr19Ni11  1Cr18Ni9  0Cr18Ni11Nb

Outer Diameter

Seamless: 1/4"-36"

Welding: 21.3mm-3620mm

Round Tube: 1/2"-10"

Square Tube/Rectangular Tube: 15x15mm-400x600mm

Wall Thickness

Seamless: 1.25mm-50mm

Welding: 1.65mm-65mm

Length

3-12 meters, Support customization

Surface Process

Bright, Polished, Black

Certificate

CE, tisi, KS, JIS, GS, ISO9001

Delivery Time

within 7 days

Other Services

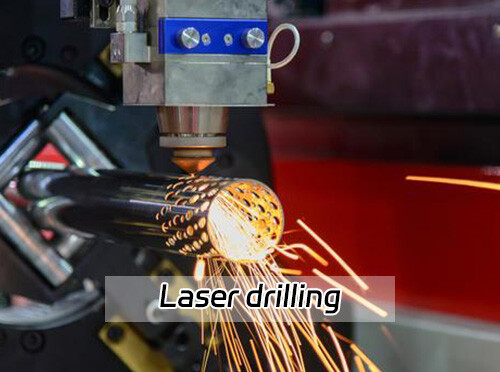

Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



St37 is a German brand, but it is a general brand, and there are several smaller brands.

For example, St37-2 St37-3U St37-3n RSt-2 USt37-2 and so on.

ST37-2 is a German carbon structural steel material grade

Equivalent to carbon structural steel Q235B

----------------------------------------------------------------------------------------

st12 is equivalent to Q235

St12 yield point 280N/mm2 Tensile strength 270 ~ 410N/mm2

Chemical composition (%) : C≤0.10%, Mn≤0.50%, P≤0.035%, S≤0.035%

----------------------------------------------------------------------------------------

ST52 Chemical composition (%):

C: 0.18 or less; Si: 0.50 or less; Mn: 1.70 or less; P: 0.030 or less. S: 0.025 or less; Nb: 0.07 or less; V: 0.15 or less; Ti: 0.20 or less; Cr: 0.30 or less; Ni: 0.50 or less; Cu: 0.30 or less; N: 0.012 or less; Mo: 0.10 or less. Als:≥0.015.

Mechanical properties:

Yield strength (MPa):

≤16mm

16-40mm

40-63mm

63-80mm

80-100mm

100-150mm

150-200mm

200-250mm

250-400mm

≥345;

≥335

≥325

≥315

≥305

≥285

≥275

≥275

≥265

Unalloyed steel is counted as ordinary structural steel, which is mainly characterized by tensile strength and yield point. It is used in civil construction, underground engineering, bridge structure, Marine structure, container manufacturing and automobile and machine manufacturing.



Hot product
Our Services

Buy our products, we will provide free service

Business service

Tianjin TISCO is a professional steel supplier. With the support of the most professional steel manufacturers and a large number of customers, we can not only provide you with ordinary steel, but also help you customize special steel, special size, special process shape and other services.

Packaging and transportation

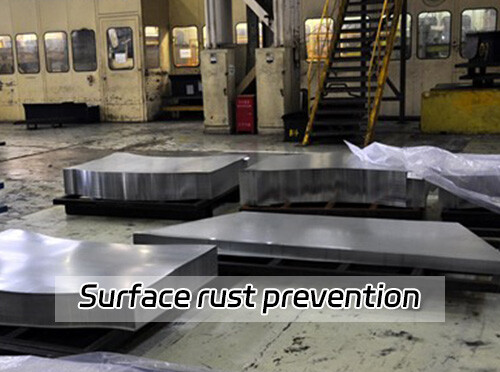

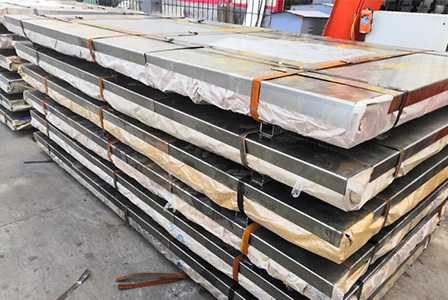

Tianjin TISCO uses standard export transport packaging and bundles steel bands according to the size of the stainless steel plate. We have frequent cooperation with freight forwarders to ensure the safe arrival of goods to the port.
According to our shipping experience, a 20-foot container can hold 22 tons of stainless steel, and a 40-foot container can hold 25 tons of stainless steel. For larger orders, we ship by bulk carrier, which is cheaper. Packaging can also be customized according to customer needs.
